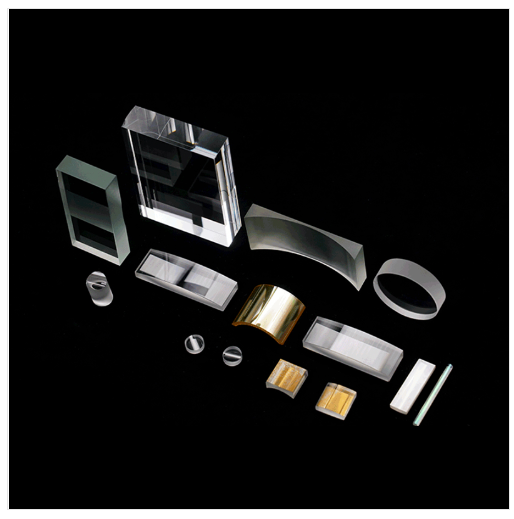

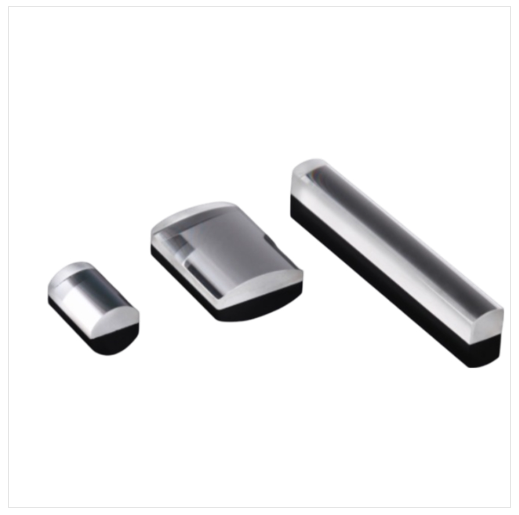

Cylinder lens

A cylinder lenss is an optical component with unique optical properties and a wide range of applications. Its production process includes steps such as raw material selection, cutting, rough grinding, fine grinding, polishing, and centering and edging. During production, it is necessary to strictly control the process parameters and quality requirements of each step to ensure the surface accuracy and optical performance of the lens. Additionally, rigorous inspection and testing of the lens are required to ensure it meets the design requirements and application needs.

Specifications
Material: Cylindrical lenses can be made of a variety of materials, including NBK7 glass, UV fused silica, fine annealed K9 optical glass, etc., to meet different application requirements.
Operating wavelength: Cylindrical lenses of different materials are available for different wavelength ranges, such as N-BK7 material with an operating wavelength of 350 nm-2.0 μm (uncoated), and UV fused silica material with an operating wavelength of 250~400nm (coated).
Size: Cylindrical lenses are available in a wide range of sizes, and the diameter and thickness can be customized according to customer needs. Common sizes range from 10.0x10.0mm to 30.0x20.0mm, and the thickness depends on the focal length and lens design.
Focal length: The focal length of a cylindrical lens can vary according to design requirements.

Production capabilities
Manufacturing process: Companies that produce cylindrical lenses usually have advanced manufacturing processes and are able to provide a variety of material options and cylindrical lens elements of different shapes and sizes.
Surface accuracy: Surface accuracy can reach λ/8 and surface quality can reach 105, ensuring optimal optical performance.
Customization capability: Cylindrical lenses can be customized according to customers' specific requirements to meet diverse application scenarios.
Mass production: Mass production of cylindrical lenses can achieve high-efficiency and high-precision lens manufacturing by optimizing production processes and adopting advanced production equipment.
Coating service: Provide coating services for various standard film systems, such as AR, BBAR, and film systems specified according to customer needs.
×
